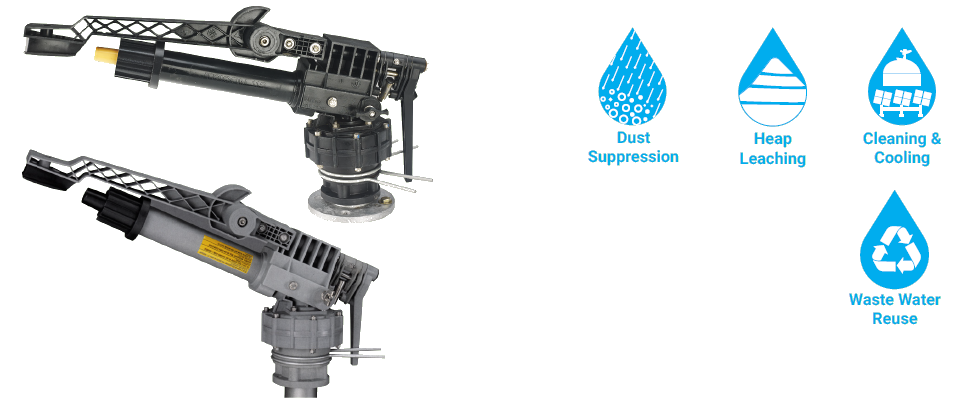

| Trigon 112-105 |
 |
Features and Specifications
- Unique Vari-Angle System This easy to adjust device is used to adapt the stream trajectory to the required application. Lowering the trajectory angle increases the efficiency of irrigation in windy conditions and reduces odors in wastewater disposal applications. It also helps to avoid obstacles, i.e. powerlines etc.
- Hydraulically Designed Barrel and Taper Bore Nozzle Excellent hydraulic design, large barrel cross section and full size taper bore nozzle allows for maximum possible throw and performance.
- Innovative Drive and Part Circle Mechanism The drive arm and the part circle mechanism are strategically placed to avoid a build-up of solids which could cause a malfunction of the gun.
- Fingertip Adjustment User friendly for fingertip adjustment to part circle mechanism
- Discharge: 130.2 to 903.6 lpm
- Wetted Radius: 22.1 to 52.4 m
- Operating Pressure: 2 to 6 Kg/cm²
- Inlet Connection: 2” female Threaded
- Usability: Raingun Assembly
Applications
- The Trigon 112 is the only big volume gun specifically engineered for leach mining applications. Materials and components are carefully selected in order to withstand the corrosive medias used. It allows to safely leach side slopes of heaps otherwise unaccessable, maximizing the result of the leaching process. On flat leach terrain, the use of the Trigon reduces labor.
- The Trigon 105 was designed for specific waste-water applications. It features a free flow passage to prevent clogging of liquids containing suspended particles. Most common applications are: municipality waste-water systems, effluent waters from food processing plants, treated manure, sugar factories and many others. It is also salt water resistant, for applications in more aggressive chemical conditions.
|
|
|
